Pulleys

V-belt pulleys

in this catalogue are all manufactured according to ISO 4183 and DIN 2211 norms.The material used for the construction of these pulleys is cast iron GG25 and after the machining all pulleys are being PHOSPHATED. Each pulley is strictly DYNAMICALLY BALANCED with high precision dynamical balancing machining tools.Unbalanced volume will corrected accurately.

Each pulley

can be used safely and reliably.
Pulleys

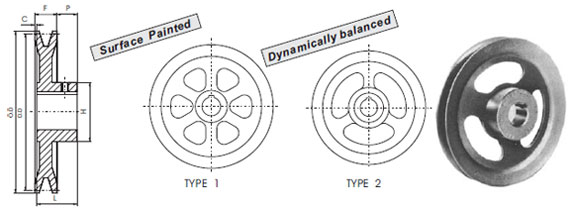

Pulley dimensions

Section	P	α°	a	b	c	d	e	f	h
SPZ	<=80	34	9.7	8.5	8	12	8	2	11
	>80	38	9.9
SPA	<=118	34	12.7	11	10	15	10	2.75	13.75
	>118	38	12.9
SPB	<=190	34	16.1	14	12.5	19	12.5	3.5	17.5
	>190	38	16.4
SPC	<=315	34	21.9	19	17	25.5	17	4.8	23.8
	>315	38	22.3

can be used safely and reliably.

dimersions	M	S	n
SPZ	9.7	8	8.5
SPA	12.7	10	11.0
SPB	16.3	13	14.0
SPC	22.0	18	19.0

Adjustable SpeedV-pulleys

Description	Profile	From	Pitch Dia		Di	Da	L	Pilot bore	Bore	Weight Kg
Description	Profile	From	Min.	Max.	Di	Da	L	Pilot bore	Bore	Weight Kg
S092-1 *1008	10X6 SPZ	1 1	55 60	88 89	48	92	31	10	28	0.85
S093-1	10X6 10X8	1 1	54 55	78 85	48	93	35	10	24	0.90
S108-1 *1008	10X6 13X8 SPZ SPA	1 1 1 1	68 70 75 76	92 100 93 102	63	108	35	10	28	1.20
S120-1 *1108	10X6 13X8 SPZ SPA	1 1 1 1	80 82 87 88	104 112 105 114	75	120	35	12	28	1.50
S138-1 *1108	10X6 13X8 SPZ SPA	1 1 1 1	98 100 105 106	122 130 123 132	93	138	38	16	42	2.20
S159-1 *1615	10X8 SPA	1 1	122 128	152 154	115	159	39	18	48	3.50
S180-1 *1615	10X8 17X11 SPA SPB	1 1 1 1	128 132 134 137	158 170 160 173	121	180	45	18	48	4.20
S20-2	10X6 13X8 SPZ SPA	2 2 2 2	80 82 87 88	104 112 105 114	75	120	68	18	28	2.95
S138-2	10X6 13X8 SPZ SPA	2 2 2 2	98 100 105 106	122 130 123 132	93	138	74	18	42	4.32
159-2	13X8 SPA	2 2	122 128	152 154	115	159	76	18	48	5.90
S180-2	13X8 17X11 SPA SPB	2 2 2 2	128 132 134 137	158 170 160 173	121	180	88	18	48	8.40
S200-2	13X8 17X11 SPA SPB	2 2 2 2	149 152 155 159	177 190 179 193	141	200	93	22	48	10.90
S250-2	13X8 17X11 22X14 SPA SPB SPC	2 2 2 2 2 2	199 202 204 205 209 216	227 240 236 229 243 240	191	250	93	22	65	16.65

Flat Belt pulleys

Flat Belt Pulleys from stock are statically balanced to grade G6.3 and from 355mm dynamically balanced to grade G6.3. Pulleys smaller than 355mm dynamically balancing can be supplied to order.
Material:GG20-25

Part No.	Da	B	Bush No.	L	Form	H	Speed	Weight without bush
FL063050	63	50	1108	22	3	0.3	12000	0.6
FL080050 FL080080	80	50 80	1210 1615	25 38	1 1	0.3 0.3	9500 9500	1.2 1.5
FL090050 FL090080 FL090100	90	50 80 100	1615 1615 1615	38 38 38	1 1 3	0.3 0.3 0.3	8500 8500 8500	1.5 1.9 2.2
FL100050 FL100080 FL100100	100	50 80 100	1615 1615 1615	38 38 38	1 1 3	0.3 0.3 0.3	7500 7500 7500	1.8 2.4 2.7
FL125050 FL125080 FL125100 FL125125	125	50 80 100 125	2012 2517 2517 2517	32 45 45 45	1 1 3 3	0.4 0.4 0.4 0.4	6000 6000 6000 6000	2.6 3.4 3.8 4.5
FL140050 FL140080 FL140100 FL140125	140	50 80 100 125	2012 2517 3020 3020	32 45 51 76	1 1 1 1	0.4 0.4 0.4 0.4	5400 5400 5400 5400	3.4 4.5 4.9 5.2
FL150050 FL150080 FL150100 FL150125 FL150160	150	50 80 100 125 160	2012 2517 3020 3020 3020	32 45 51 76 76	1 1 1 1 1	0.4 0.4 0.4 0.4 0.4	5000 5000 5000 5000 5000	4.0 5.4 6.2 6.7 7.6
FL160050 FL150080 FL160100 FL160125 FL160160	160	50 80 100 125 160	2012 2517 3020 3030 3030	32 45 51 76 76	1 1 1 1 1	0.5 0.5 0.5 0.5 0.5	4750 4750 4750 4750 4750	4.6 6.3 7.5 8.5 10.0
FL180080 FL180100 FL180125 FL180160	180	80 100 125 160	2517 3020 3030 3030	45 51 76 76	1 1 1 1	0.5 0.5 0.5 0.5	4250 4250 4250 4250	7.2 9.8 12.0 14.0
FL200080 FL200100 FL200125 FL200160	200	80 100 125 160	2517 3020 3030 3030	45 51 76 76	1 1 1 1	0.6 0.6 0.6 0.6	3800 3800 3800 3800	8.0 12.0 15.5 18.0
FL224080 FL224100 FL224125 FL224160	224	80 100 125 160	2517 3020 3030 3030	45 51 76 76	1 1 1 1	0.6 0.6 0.6 0.6	3400 3400 3400 3400	8.2 11.5 15.0 17.0
FL250080 FL250100 FL250125 FL250160	250	80 100 125 160	2517 3020 3030 3030	45 51 76 76	1 1 1 1	0.8 0.8 0.8 0.8	3000 3000 3000 3000	8.5 11.0 15.5 17.5
FL280100 FL280125 FL280160 FL280200	280	100 125 160 200	3020 3030 3535 4040	51 76 89 102	1 1 1 1	0.8 0.8 0.8 0.8	2700 2700 2700 2700	13.4 17.3 21.8 28.3
FL315100 FL315125 FL315160 FL315200	315	100 125 160 200	3020 3030 3535 4040	51 76 89 102	1 1 1 1	0.8 0.8 0.8 0.8	2400 2400 2400 2400	15.8 19.0 26.0 32.0
FL355100 FL355125 FL355160 FL355200	355	100 125 160 200	3020 3030 3535 4040	76 76 89 102	1 1 1 1	0.8 0.8 0.8 0.8	2150 2150 2150 2150	20.0 22.0 27.0 36.0
FL400100 FL400125 FL400160 FL400200	400	100 125 160 200	3535 3535 3535 4040	89 89 89 102	1 1 1 1	1.0 1.0 1.0 1.0	1900 1900 1900 1900	26.0 28.0 32.0 40.0
FL450160 FL450200	450	160 200	3535 4040	89 102	1 3	1.0 1.0	1700 1700	42.5 54.5
FL500160 FL500200	500	160 200	4040 4545	102 115	3 3	1.0 1.0	1500 1500	53.0 69.0
FL560160 FL560200	560	160 200	4040 4545	102 115	3 3	1.2 1.2	1350 1350	66.5 86.0
FL630160 Fl630200	630	160 200	4545 4040	115 127	3 3	1.2 1.2	1200 1200	80.0 103.0

AK BK Standard Sheaves

Single Groove Sheaves for 3L , 4L or A ,and 5L or B Belts

“SA” Sheaves-No Keyway

Part No.

Type

Dimensions

Stock Bore Marked “x”

Wt.
Lbs.

O.D.

Datum “4L” or “A”

Pitch “3L”

1/2

5/8

3/4

7/8

SA50
SA60
SA70
SA80 SA90
SA100
SA110
Sa120

2*
2*
2
2 2
1
1
1

5.10
6.10
7.10
8.10 9.10
10.10
11.10
12.10

5.0
6.0
7.0
8.0 9.0
10.0
11.0
12.0

4.7
5.7
6.7
7.7 8.7
9.7
10.7
11.7

5/32
5/32
5/32
5/32 5/32
5/32
5/32
5/32

19/32
19/32
19/32
19/32 19/32
19/32
19/32
19/32

13/4
13/4
13/4
13/4 13/4
13/4
13/4
13/4

29/32
29/32
29/32
29/32 29/32
29/32
29/32
29/32

15/32
15/32
15/32
15/32 15/32
15/32
15/32
15/32

X
X
X
X X
X
-
X

X
X
X
X X
X
X
X

X
X
-
- -
-
-
-

X
X
X
X X
X
X
X

0.9
1.1
1.5
1.7 2.0
2.3
2.6
2.8

“SAK” Sheaves-Standard Keyway

Part No.

Type

Dimensions

Stock Bore Marked “x”

Wt.
Lbs.

O.D.

Datum “4L” or “A”

Pitch “3L”

5/8

3/4

7/8

SAK50
SAK60
SAK70
SAK80 SAK90
SAK100
SAK110
SAK120

2*
2*
2
2 2
1
1
1

5.10
6.10
7.10
8.10 9.10
10.10
11.10
12.10

5.0
6.0
7.0
8.0 9.0
10.0
11.0
12.0

4.7
5.7
6.7
7.7 8.7
9.7
10.7
11.7

5/32
5/32
5/32
5/32 5/32
5/32
5/32
5/32

19/32
19/32
19/32
19/32 19/32
19/32
19/32
19/32

13/4
13/4
13/4
13/4 13/4
13/4
13/4
13/4

29/32
29/32
29/32
29/32 29/32
29/32
29/32
29/32

15/32
15/32
15/32
15/32 15/32
15/32
15/32
15/32

X
X
X
X X
X
X
X

X
X
-
- -
-
-
-

X
X
X
X X
X
X
X

1.0
1.2
1.6
1.9 2.2
2.5
2.8
3.1

“SB” Sheaves-No Keyway

Part No.

Type

Dimensions

Stock Bore Marked “x”

Wt.
Lbs.

O.D.

Datum “4L” or “A”

Pitch “3L”

1/2

5/8

3/4

7/8

Sb45
SB55
SB65
SB75 SB85
SB95
SB105
Sb115

2*
2*
2
2 2
1
1
1

5.06”
6.06
7.06
8.06 9.06
10.06
11.06
12.06

4.5”
5.5
6.5
7.5 8.5
9.5
10.5
11.5

4.3”
5.3
6.3
7.3 8.3
9.3
10.3
11.3

19/32”
19/32
19/32
19/32 19/32
19/32
19/32
19/32

13/16”
13/16
13/16
13/16 13/16
13/16
13/16
13/16

13/4”
13/4
13/4
13/4 13/4
13/4
13/4
13/4

29/32”
29/32
29/32
29/32 29/32
29/32
29/32
29/32

3/8”
3/8
3/8
3/8 3/8
3/8
3/8
3/8

X
X
X
X X
X
0
X

X
X
X
X X
X
X
X

X
X
0
0 0
0
0
0

X
X
X
X X
X
X
X

0.9
1.1
1.5
1.7 2.0
2.3
2.6
2.8

“SBK” Sheaves-Standard Keyway

Part No.

Type

Dimensions

Stock Bore Marked “x”

Wt.
Lbs.

O.D.

Datum “4L” or “A”

Pitch “3L”

5/8

3/4

7/8

SBK45
SBK55
SBK65
SBK75 SBK85
SBK95
SBK105
SBK115

2*
2*
2
2 2
1
1
1

5.06”
6.06
7.06
8.06 9.06
10.06
11.06
12.06

4.5”
5.5
6.5
7.5 8.5
9.5
10.5
11.5

4.3”
5.3
6.3
7.3 8.3
9.3
10.3
11.3

19/32”
19/32
19/32
19/32 19/32
19/32
19/32
19/32

13/16”
13/16
13/16
13/16 13/16
13/16
13/16
13/16

13/4”
13/4
13/4
13/4 13/4
13/4
13/4
13/4

29/32”
29/32
29/32
29/32 29/32
29/32
29/32
29/32

3/8”
3/8
3/8
3/8 3/8
3/8
3/8
3/8

X
X
X
X X
X
X
X

X
X
-
- -
-
-
-

X
X
X
X X
X
X
X

1.0
1.2
1.6
1.9 2.2
2.5
2.8
3.1

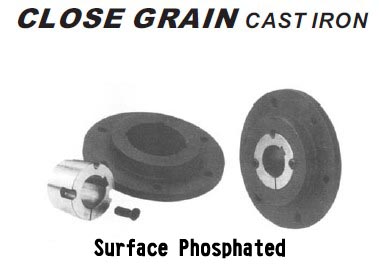

Bolt-on Hubs For Taper Bushes

Bolt - on - Hubs are statically or dynamically balanced.

Accurately Machined !
Ideal for Original Equipment!

All series of specifications
can be sold off-the shelf,
immediate delivery.
Fast and convenient .
Please contact us directly.

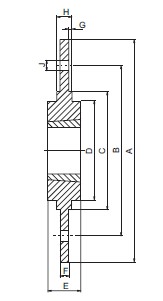

Bolt - on Hubs For Taper Bushing

Part No.	Bush No.	MAIN DIMENSIONS								SCREWHOLE NXJ
Part No.	Bush No.	A	B	Ch9	D	E	F	G	H	SCREWHOLE NXJ
SM1200 SM1600 SM2000 SM2500 SM30-1 SM30-2 SM1210 SM1610 SM2012* SM2517 SM3020	1210 1615 2012 2517 3020 3020 1210 1610 2012 2517 3020	180 200 270 340 430 485 120 130 145 185 220	135 150 190 240 300 340 100 110 125 155 190	90 110 140 170 220 250 80 90 115 130 160	75 85 110 125 160 160 75 85 110 125 160	25 38 32 45 51 51 25 25 32 45 51	6.5 7.5 8.5 9.5 13.5 13.5 6.5 7.5 8.5 9.5 13.5	2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5	11.5 12.5 13.5 14.5 18.5 18.5 11.5 12.5 13.5 14.5 18.5	6×Φ7.5 6×Φ7.5 6×Φ9.5 8×Φ11.5 8×Φ13.5 8×Φ13.5 8×Φ7.5 8×Φ7.5 8×Φ7.5 8×Φ11.5 8×Φ13.5

Canonlybeinstalled from one side
