| Conveyor Belt -------Impact Bar |

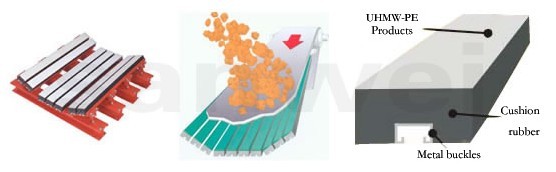

| Impact bar is used in the loading area of the belt conveyor to replace the traditional cushion rollers. It’s designed to absorb impact loading which will dramatically reduce shock stress loading to the structure. |
 |
| |
| Features: |
1.Avoids the damage to the belt through the contact between the bar surface of belt.
2.The conveyor belt is stressed evenly in the loading area, which will reduce the daily maintenance cost.
3.Effectively eliminate the spillage scattering of the material caused by unequality of the stress on the belt.
4.The UHMW polyethylene surface has outstanding sliding properties.
5.Arc surface of polyethylene enables the conveyor belt to running smoothly.
6.Ultra elastic rubber absorb the impact in the maximum.
7.Each part of the impact bar is closely jointed by hot vulcanization.
8.“T-track” fastening device has different tightening points along the bar make the joining strong reliable, easy to install remove. |
| Technical Data: |
| Color of UHMWPE |
Blue/White |
| Tensile strength |
(Mpa) |
30 |
| Elongation at break |
(%) |
300 |
| Hardness |
(Shore A) |
95-98 |
| Density |
(g/cm3) |
0.93-0.94 |
| Coefficient of friction |
|
0.07 |
| Color of rubber |
Black |
| Tensile strength |
(Mpa) |
19 |
| Elongation at break |
(%) |
400 | |
| SizeSpecification: |
| Length |
Width |
Height |
| 1220 |
100 |
50,75,100 |
| 1400 |
| 1524 |
| 1600 |
| 1800 | |
| Note: |
1.Standard accessories including bolt nylon –inserted hexagon nut are offered.
2.Other types can be made according to customers’ demand. |
