| Elevator Bucket-------Elevator Belt |
 |
The Conveystar elevator bucket belts systems
include :
·elevator belt
·flat belt
·PVC elevator belt |
| |
| elevator belt |
 |
| It’s a high performance belt which is suitable for grain handling industry. The carcass is a kind of rubber dipped synthetic fabric bearing low stretched polyester warpnylon weft. The cover rubber is static conductive, the surface resistance meets standard OSHA; Fire retardance meets MSHA regulations; Oil resistance belt is used to handle oily material. |
| Specification: |
| Model |
Thickness of Cover Rubber
Inch（mm） |
Tensile Strength
Ibs./P.I.W.(N/mm) |
Nominal Thickness
Inch（mm） |
Minimum Diameter of Pulley
Inch
(mm) |
| 2-ply 220 |
Black,1/16X1/16 （1.5875mm） |
190(330N/mm) |
0.25-6.35 |
12月16日(304.8~406.4) |
| 3-ply 330 |
Black,1/16X1/16 |
280(490N/mm) |
0.313-7.95 |
14-18(355.6~457.2) |
| 4-ply 440 |
Black,1/16X1/16 |
370(650N/mm) |
0.344-8.738 |
18-24(457.2~609.6) |
| 3-ply 600 |
Black,1/16X1/16 |
520（910N/mm） |
0.344-8.738 |
20-30(508~762) |
|
| The carcass is a kind of rubber dipped synthetic fabric bearing low stretched polyester warpnylon weft. Adding a wear resistant fabric on the side which the belt contact with the elevator pulley which works as the interface between the elevator beltthe pulley. |
| Features: |
1.Low extensibility, high t tensile strength, oil resistant, suitable for moderate oily material.
2.The reformed structure that adding a wear resistant fabric on the side which the belt contact with the elevator pulley can improve the transmission efficiency of the elevators, enhance the fastener retentionprevent the bolt from pulling through the belt., to ensure the tight join of bucketbelt.
3.No cover rubber splitting caused by frequent contact with the pulley.
4.More cost effective than the traditional rubber elevator belt.
Remark：Drilling can be made according to customers’ demand. |
| Technical Data: |
| Model |
Tensile Strength at Full Thickness (in warp)（N/mm） |
Elongation at Rated Load（≤％） |
Adhension Strength （≥N/mm） |
Abrasion Loss of Cover Rubber（mm3） |
Thickness （mm） |
Recommend Minimum Diameter of Pulley（￠） |
| Ply Ply |
CoverCore |
| 600YP |
600 |
1.6 |
4.5 |
3.2 |
200 |
5 |
350 |
| 800YP |
800 |
6.5 |
450 |
| 1000YP |
1000 |
8 |
600 | |
| flat belt |
 |
| Features: |
|
1.Innovative design, adopting advance rubber compound with good adhesion at opposite joint of surface fabric with fillet, delaminating will not occur during operation.
2.Adopting high quality pure cotton canvass, the duck plies have good endurationwill not easily deform. |
| Technical Data Sheet: |
| No. of plies |
Width
(mm) |
Tensile strength in warp at full thickness
(N/mm) |
Elongation at break in warp at full thickness（％） |
Adhesion between plies
(N/mm) |
| 3 |
100～1500 |
190 |
≤ 20 |
≥ 3.0 |
| 4 |
240 |
| 5 |
290 |
| 6 |
340 |
| 7 |
385 |
| 8 |
425 |
| 9 |
450 |
| 10 |
500 |
| 12 |
585 | |
| PVC elevator belt |
 |
 |

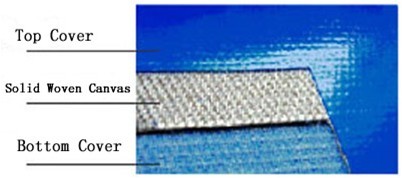

| The solid woven carcass is generally woven with Terylenecotton. Synthetic binder yarns follow a complex pattern to give the carcass its solid woven properties. Impregnating PVC paste resinpressed by both sides to get the PVC cover. (one side is smooth cover, the other side that touches with pulley is friction cover). It’s fire retardantanti-static. |
| Features： |
1.Multiply inter-woven carcass keeps synchronous in the course of weaving, impregation, plasticizationpaste. The structure is stressed in balance. The dipping elastomer could bind all the yarn, composing a close-grainedflexible carcass. No excessed pullingcompression. Keep a good running trailnot easy to off track.
2.Compared to the rubber elevator belt, it’s uniformly stressed to ensure the strong elevating capability. No peeling off both on the cover rubberbetween plyply with superior tear resistance.
3.Good bolt retentionmakes a strong joint between the bucketbelt.
4.With better properties such as resistance to oils, chemicals, dumpswear compared to the rubber elevator belt.
5.Light weight, strong structurelow driving power. With superior anti-extensibilitylower extension rate compared to the rubber elevator belt.
6.It applies to big bucket of big loadbig size.
7.PVC elevator belt is suitable for the buckets with big burdenwith a wide projection. |
| SpecificationsPerformance Parameter |
| Model |
Weft Tensile Strength |
Color |
Thickness
mm |
Weight
Kg/m² |
| Ibs/P.I.W |
N / mm |
| PVC170 |
170 |
300 |
Cover Rubber：Blue
Carcass：White |
4.2 |
5.6 |
| PVC300 |
300 |
525 |
5.6 |
7.6 |
| PVC350 |
350 |
613 |
6.8 |
9.2 |
| PVC450 |
450 |
788 |
7.8 |
10.6 |
| PVC600 |
600 |
1050 |
9 |
12.2 | |
| Performance of Cover Rubber |
| Item |
PVC Solid Woven Elevator Belt |
Rubber Elevator Belt |
| Surface |
Tensile Strength N/mm2 |
＞150 |
＞100 |
| Elongation at Breaking % |
＞300 |
＞350 |
| Abrasion Loss mm 3 |
＜150 |
＜250 |
| Overall Thickness |
elongation at 10% rated load |
≤1.6 |
≤1.6 |
| Agglutinate Strength N/mm |
＞7.0 |
＞4.5 |
| Electrical Conductivity MΩ ≤ |
＜300 |
— |
| Working Temperature℃ |
-20~+85 |
-20~+120 | |
