| Conveyor Belt Fasteners-------A5 A6 A7 A8 A9 SERIES |
| The Conveystar A5--A9 systems include: |
 |
A5-SERIES
·1# ·2# ·3# |
| MODEL |
BELT THICKNESS |
| A5-1 |
8-10mm |
| A5-2 |
9.5-12.5mm | |
|
 |
A6-SERIES
·24# ·26# ·38# |
| MODEL |
BELT THICKNESS |
BELT TENSION |
| 24 |
8-10mm |
≤1400N/mm |
| 26 |
10-12mm |
≤1400N/mm |
| 28 |
12-14mm |
≤1400N/mm | |
|
 |
A7-SERIES
·24# ·26# ·28# ·30# |
| MODEL |
BELT THICKNESS |
BELT TENSION |
| 24 |
8-10mm |
≤1250N/mm |
| 26 |
10-12mm |
≤1250N/mm |
| 28 |
12-14mm |
≤1250N/mm |
| 30 |
14-16mm |
≤1250N/mm | |
|
 |
A8-SERIES
·24# ·26# ·28# ·30#
·32# ·34# ·36# |
| MODEL |
BELT THICKNESS |
BELT TENSION |
| 24 |
8-10mm |
≤2000N/mm |
| 26 |
10-12mm |
≤2000N/mm |
| 28 |
12-14mm |
≤2000N/mm |
| 30 |
14-16mm |
≤2000N/mm |
| 32 |
16-18mm |
≤2000N/mm |
| 34 |
18-20mm |
≤2000N/mm |
| 36 |
22-22mm |
≤2000N/mm | |
|
 |
A9-SERIES
·24# ·26# ·28# ·30#
·32# ·34# ·36# |
| MODEL |
BELT THICKNESS |
BELT TENSION |
| 24 |
8-10mm |
≤2000N/mm |
| 26 |
10-12mm |
≤2000N/mm |
| 28 |
12-14mm |
≤2000N/mm |
| 30 |
14-16mm |
≤2000N/mm |
| 32 |
16-18mm |
≤2000N/mm |
| 34 |
18-20mm |
≤2000N/mm |
| 36 |
22-22mm |
≤2000N/mm | |
|
For use with modern lightweight, high strength belting. Designed to operate smoothly over slider bedtroughing conveyor applications.

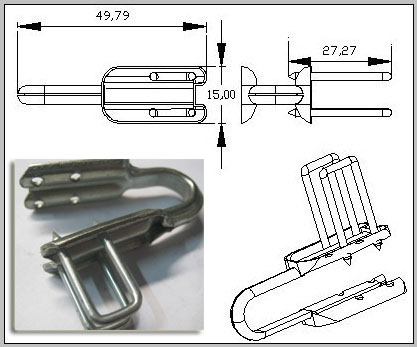

Preset A5 A6 A7 A8 A9 SERIES belt fasteners are unique compared to conventional lightweight belt fasteners, because the staples are clinched 90 degrees to the direction of the pull of the belt. Therefore, it is virtually impossible for the staple to open under load. Our staples are also unique. While other brands may be rectangular, with their narrow dimension in line with the pull of the belt, A5 A6 A7 A8 A9 SERIES staples are oval-shaped with smooth, rounded edges. This design feature reduces the possibility of the staple damaging belting fabric.
