| Elevator Bucket-------Split Bucket /Bottomless Bucket /European Style Bucket |
 |
 |
 |
| split bucket |
bottomless bucket |
european style bucket |
| |
| split bucket |
| Usage: |
1.Suitable for high-speed centrifugal discharge.
2.Recommended minimum bucket spacing: the width of the bucket projection "B"+50mm.
3.Recommended elevator velocity ≤3.5m/s.
4.Recommended a “Capacity L” as the available capacity for engineering design. |
 |
| Model |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
No.of Holes |
Dia.of Holes |
Capacity(L) |
| DG1107 |
110 |
77 |
86 |
25 |
72 |
2 |
7 |
0.45 |
| DG1307 |
134 |
77 |
86 |
25 |
72 |
2 |
7 |
0.56 |
| DG1309 |
135 |
96 |
92 |
30 |
80 |
2 |
7 |
0.75 |
| DG1812 |
185 |
120 |
120 |
40 |
120 |
2 |
9 |
2 | |

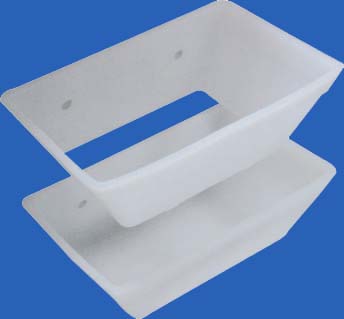

| bottomless bucket |
| Several bottomless bucketone bucket consists of one groupthey’re installed in a very close spacing to make the material elevate continuously. |
| Usage: |
1.Suitable for high-speed centrifugal discharge.
2.Recommended minimum bucket spacing: Buckets spacing in one group—“C”＋1mm; Bucket spacing between the groups –Bucket Projection “B”－Height of the back wall “C” +25mm.
3.Recommended elevator velocity ≤3.5m/s.
4.Recommend using "Capacity (L)" as usable capacity for engineering purpose. |
 |
| Model |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
No. of holes |
Hole Diameter |
Capacity(L) |
Remarks |
| DW0706 |
72 |
62 |
30 |
14 |
30 |
2 |
7 |
0.08 |
|
| DW1109 |
110 |
92 |
50 |
20 |
60 |
2 |
7 |
0.21 |
| DW0907 |
90 |
78 |
33 |
15 |
40 |
2 |
7 |
0.18 |
improved type，which can effectively reduce backlegging. |
| DW1109A |
110 |
92 |
45 |
22 |
60 |
2 |
7 |
0.25 |
| DW1310 |
130 |
102 |
45 |
20 |
70 |
2 |
7 |
0.36 |
| DW1311 |
130 |
110 |
45 |
18 |
70 |
2 |
7 |
0.36 |
|
| DW1812 |
186 |
125 |
60 |
25 |
90 |
2 |
9 |
0.85 | |

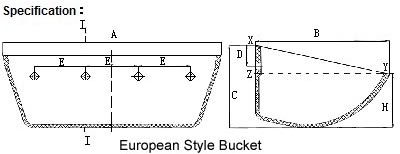

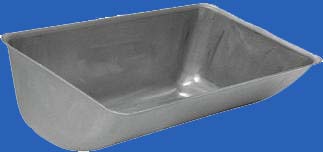

| european style bucket |
| It’s designed to meet the using demand in European market. Compared to the deep bottom bucket, it can be installed with less spacing, thus increase the elevator capacity. |
| Usage: |
1.Suitable for high-speed elevatorlight bulk material lifting.
2.Recommended minimum bucket spacing: width of the bucket projection "B"+25mm, which can be appropriately reduced according to elevator capacity requirement.
3.Recommended elevator velocity ≤3.3m/s.
4.Recommend using"Z-Y+5%" as usable capacity for engineering purpose. |
 |
| Model |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
No. of holes |
Hole Diameter |
Capacity（L）
X-Y |
Capacity（L）
(Z-Y)+5% |
Capacity（L）
Z-Y |
| 4×3 |
107 |
91 |
62 |
17 |
50 |
2 |
8.5 |
0.3 |
0.22 |
0.21 |
| 5×4 |
140 |
115 |
80 |
23 |
70 |
2 |
8.5 |
0.63 |
0.55 |
0.52 |
| 6×5 |
159 |
113 |
77 |
23 |
88 |
2 |
9 |
0.67 |
0.57 |
0.54 |
| 7×5 |
188 |
144 |
92 |
30 |
100 |
2 |
8.5 |
1.2 |
1.01 |
0.96 |
| 8×5 |
203 |
147 |
111 |
32 |
100 |
2 |
9 |
1.96 |
1.5 |
1.4 |
| 9×6 |
240 |
172 |
110 |
38 |
120 |
2 |
10.5 |
2.5 |
2 |
1.9 |
| 11×6 |
290 |
174 |
110 |
36 |
80 |
3 |
10.5 |
3 |
2.44 |
2.32 |
| 12×7 |
315 |
188 |
123 |
35 |
100 |
3 |
9 |
4.25 |
3.33 |
3.17 |
| 13×8 |
340 |
220 |
138 |
38 |
120 |
3 |
10.5 |
5.6 |
4.7 |
4.47 |
| 14×7 |
370 |
188 |
132 |
35 |
90 |
4 |
9 |
5 |
3.85 |
3.66 |
| 15×8 |
380 |
220 |
142 |
36 |
90 |
4 |
10.5 |
6.3 |
4.9 |
4.66 |
Remark: other specification could according to the customers’demand. |
