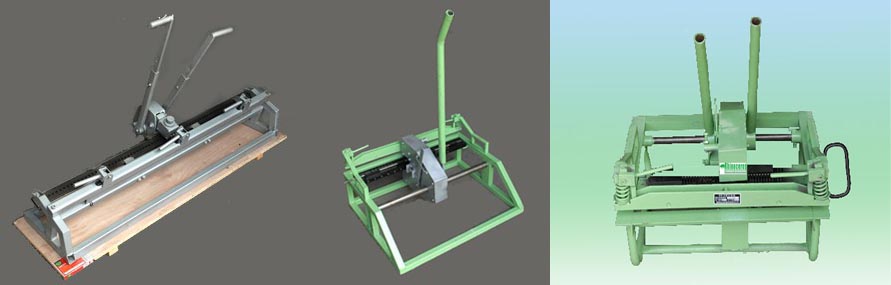

TOOLS------Lever Type Fastening Machine

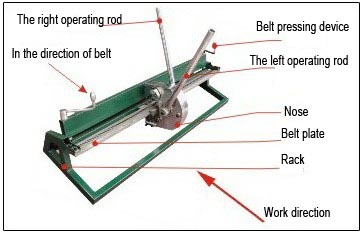

       Lever type button-stitching machine has the advantages of reasonable structure, convenient operation, applicable to underground environment, saving operation time, a meter only needs 7 minutes, high efficiency, long life.

Belt buckle stapling method

1 the belt buckle with a nail side up into the buttoning machine, used to wear a belt buckle positioning.

2 conveyor belt into the belt buckle, must meet the bottom position, buckle belt ends than narrow around 5cm.

3 use a specially configured hammer, do not use more than 6 pound hammer, to tap A (rear position). A trap, then press B ( the highest position ) to make a set of conveyor belt on a nail bent again, automatically.

4 first set a middle button,then set the left (right ) of a buckle,then from right (left ) are booked up.
