Elevator Bucket-------Deep/Shallow Bottom Bucket

deep bottom bucket

Usage:

1.Suitable for high speed centrifugal high-speed centrifugal discharge.
2.Recommended minimum bucket spacing: width of the bucket projection "B"+25mm, which can be appropriately reduced according to elevator capacity requirement.
3.Recommended elevator velocity ≤2.5m/s.
4.Recommend using"(Z-Y)+10%" as usable capacity for engineering purpose.

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	No. of holes	Hole Diameter	Capacity（L） (X-Y)	Capacity（L） (Z-Y)+10%	Capacity（L） (Z-Y)
DS0705	78	55	71	20	40	2	7	0.16	0.07	0.06
DS0807	90	75	64	20	50	2	7	0.25	0.15	0.14
DS1009	100	90	93	24	50	2	7	0.4	0.29	0.26
DS1109	116	92	85	25	60	2	7	0.42	0.3	0.27
DS1307	130	75	80	25	60	2	7	0.4	0.24	0.22
DS1309	130	90	80	25	60	2	7	0.5	0.25	0.23
DS1009A	106	92	88	25	50	2	7	0.42	0.29	0.26
DS1311	134	115	94	35	60	2	7	0.75	0.56	0.51
DS1311A	134	115	94	35	60	2	7	0.75	0.56	0.51
DS1411	145	110	96	35	60	2	7	0.75	0.71	0.65
DS1508	152	84	78	18	76	2	7	0.47	0.35	0.32
DS1511	150	110	100	35	80	2	7	0.9	0.62	0.56
DS1612	165	120	110	40	90	2	7	1.05	0.68	0.62
DS1613	164	139	124	40	90	2	7	1.4	1.12	1.02
DS1812	188	125	115	40	120	2	9	1.3	0.73	0.66
DS1814	188	140	130	40	120	2	9	1.7	1.49	1.35
DS2010	202	102	98	20	120	2	7	0.91	0.66	0.6
DS2014	208	140	120	40	120	2	9	1.8	1.21	1.1
DS2312	235	125	125	40	120	2	9	1.9	1.32	1.2
DS2314	235	140	130	40	85	3	9	2.27	1.6	1.45
DS2316	238	166	154	45	85	3	9	3	1.85	1.68
DS2511	250	114	115	25	125	2	7	1.5	0.99	0.9
DS2616	266	166	154	45	90	3	9	3.3	2.3	2.09
DS2812	280	125	130	40	100	3	9	2.4	1.78	1.62
DS2814	280	140	139	40	100	3	9	2.7	1.87	1.7
DS2816	282	168	154	45	100	3	9	3.7	3.01	2.74
DS2823	289	230	190	55	100	3	9	6.7	4.85	4.41
DS2916	297	170	155	45	110	3	9	4	2.77	2.52
DS2919	295	197	178	50	75	4	9	5.8	4.72	4.29
DS3114	312	147	146	45	80	4	9	3.26	2.3	2.09
DS3116	313	168	154	45	85	4	9	4.4	3.09	2.81
DS3118	315	190	175	45	85	4	9	5.1	3.52	3.2
DS3121	315	220	200	55	85	4	9	7.4	6.12	5.56
DS3518	358	190	180	50	95	4	9	6.8	5.09	4.63
DS3621	365	220	200	55	95	4	9	8.5	7.1	6.45
DS4118	419	190	180	50	85	5	9	8.4	5.64	5.13
DS4121	418	222	200	55	85	5	9	10.4	8.77	7.97
DS4621	460	220	200	55	95	5	9	11.7	9.57	8.7
DS5121	519	225	210	55	90	6	9	13.68	12.18	11.07

Remark：Drilling can be made according to customers’ demand.

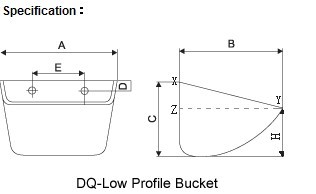

shallow bottom bucket

　　Compared to the deep bottom bucket, it can be installed with less spacing, thus increase the elevator capacity.

Usage:

1.Suitable for high-speed elevatorlight bulk material lifting.
2.Recommended minimum bucket spacing: width of the bucket projection "B"+25mm, which can be appropriately reduced according to elevator capacity requirement.
3.Recommended elevator velocity ≤3.5m/s.
4.Recommend using"Z-Y+5%" as usable capacity for engineering purpose.

Specification:

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	No. of holes	Hole Diameter	Capacity（L） X-Y	Capacity（L） (Z-Y)+5%	Capacity（L） Z-Y
DQ1009	106	93	66	25	50	2	7	0.4	0.22	0.21
DQ1311	136	114	72	25	60	2	7	0.5	0.32	0.3
DQ1312	138	120	91	30	60	2	7	0.8	0.64	0.61
DQ1613	165	135	82	25	90	2	9	0.96	0.76	0.72
DQ1814	186	140	87	30	100	2	9	1.13	0.82	0.78
DQ1914	190	145	115	35	100	2	9	1.6	1.26	1.2
DQ2312	234	125	95	35	120	2	9	1.5	1.16	1.1
DQ2314	235	143	96	30	120	2	9	1.68	1.31	1.25
DQ2316	238	160	102	35	120	2	9	1.9	1.38	1.31
DQ2417	248	178	120	40	120	2	9	2.6	2.3	2.18
DQ2616	260	167	144	50	80	3	9	2.2	1.32	1.25
DQ2814	285	143	96	30	90	3	9	2.08	1.59	1.51
DQ2816	290	167	108	35	90	3	9	2.65	2.31	2.2
DQ2817	290	178	120	40	90	3	9	3.35	2.63	2.5
DQ2824	289	244	166	45	100	3	9	6.4	5.9	5.6
DQ3321	337	215	140	40	85	4	9	5.5	3.9	3.7
DQ3325	339	259	170	50	85	4	9	8.5	6.9	6.55
DQ3823	382	230	165	45	100	4	9	8	6.3	6
DQ3917	393	170	130	40	100	4	9	5	3.42	3.25
DQ4423	447	230	165	45	90	5	9	9.2	7.67	7.3
DQ4723	475	230	164	45	95	5	9	10	8.5	8.1
DQ4726	470	260	170	50	95	5	9	11.5	9.9	9.4
DQ5122	519	220	168	50	100	5	11	11.25	9.36	8.91
DQ5626	569	260	170	50	115	5	11	15	12.35	11.75

Remarks: Drilling can be made according to customers’ demand.
